Pro Tools 9 (HD Native) Performance Test February 16, 2011
Posted by ConnorSmith in : Avid, Pro Tools, Studio Setup , trackbackLet’s keep it going with the Pro Tools 9 theme.
Today I’d like to explore the benchmark performance of Pro Tools 9 (specifically Native HD – although since it’s still all native, it should be a fairly valid test of non-Native HD systems as well). For me, the performance has been excellent and robust with few exceptions.
For the record, this is the computer I am using to test:
- Mac Pro (2008), 8-core 3.2 GHz, 16GB Ram
- Snow Leopard 10.6.6 (combo updater)
- Pro Tools 9.0.1
- UAD2 (PCIe) and Duende Mini (FW400) peripherals
- Separate internal SATA drives for OS, audio, and sample libraries
- Updated drivers on plug-ins
- Pro Tools Native PCIe card connected to an Avid HD I/O 16×16 analog
I chose to use a project file that was fairly processor-intensive when I was still on Pro Tools 8. This is an 88.2/24 session, with 56 tracks. One thing to note is that in Pro Tool’s Setup>Playback Engine menu, I do recommend selecting one less processing core than you have available (so in this test, since I have an 8-core, I choose “7 processors”). This frees up one processor for OS and other processing and makes things run much better. There is a lot of automation of volume faders, sends, and plug-in parameters.
Plug-ins are running natively, on the UAD2, and on the Duende – here are the specific counts:
- 93 Native Plug-ins (including 5 of Avid’s “Eleven” amp sim, 2 convolution reverbs, 4 instances of Auto Tune, and 37 Waves SSL plug-ins including 3 stereo bus compressors)
- 9 Duende plug-ins
- 8 UAD2 plug-ins
- 1 Instance of Avid’s “Mini Grand”
- 1 Instance of Kontakt (running 3 instruments in total)
While I’ve seen/used sessions that are larger with more plug-ins, I feel confident that this is fairly close to a universally “large mix” for most home and project studio owners. I also did have the (Short) Delay Compensation Engine running.
I set the buffer to 64 samples (which on the Avid hardware means unbelievably low latency for a Native system) and started playback – the whole song was OK. From there, I started adding plug-in instances during playback to “jog” the system. I had 1 or 2 momentary hiccups here, but nothing serious (no crashes etc. – I’ll talk about problems later on). I also made new audio tracks and recorded 4 at a time in (more than I’d usually do simultaneously for post-mix overdubs) with no problems.

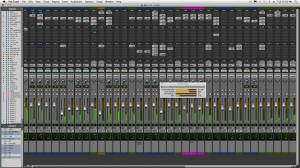

Below is a screenshot (of as much of the mixer as I could fit on a screen!) of a very intense part of the song with lots of automation going and the most tracks playing back simultaneously. As you can see, we are just above 60% on CPU usage.
Pro Tools HD Native performance @ 64 Sample Buffer
To be honest, I would rarely ever go to 64 samples during a mix – and with Low Latency Mode available for recording tracks, I could stay at a higher buffer regardless. The purpose of this test was simple to push things to the extreme to see how they would fall. Overall, I can’t ask much more out of this Native DAW – it performs extremely well.
Things that make HD Native have errors (as you’ll notice, they are all when playback is engaged):
- While inserting native plug-ins during intense playback has been fine thus far, I have gotten 1-2 buffer errors when inserting Duende and UAD2 plug-ins at that time. Granted this has only happened with low (64/128) buffer settings and not at higher buffers as of yet.
- If the song is playing back and you add numerous new audio/aux tracks, I’ve seen a buffer error.
- The only time I’ve gotten PT HD Native to completely crash (close the program) is when, while in a processor-intensive song spot, inserting a plug-in and immediately saving (ctrl+s) while the plug-in is loading. Pro Tools doesn’t like that, especially at low buffer settings.
In summary – just stop playback before making major changes, and everything will remain happy. Pro Tools 9 seems more efficient than Pro Tools 8 in terms of handling computer resources. It has been very stable with few errors and crashes.
Having problems with your system’s Pro Tools 9 performance? Let me know about your system here and we’ll make it work!
Connor
The Studio Files
